Wheel Velocity Estimation

Kalman Filter Algorithms

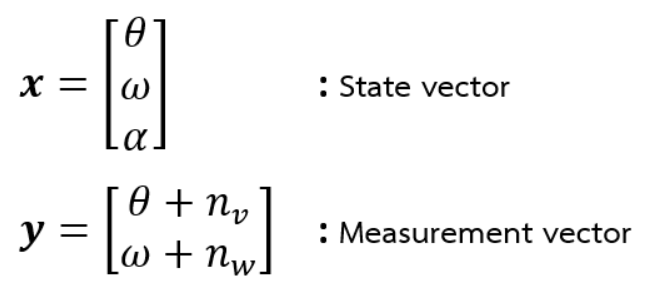

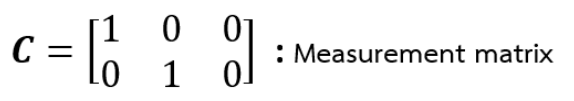

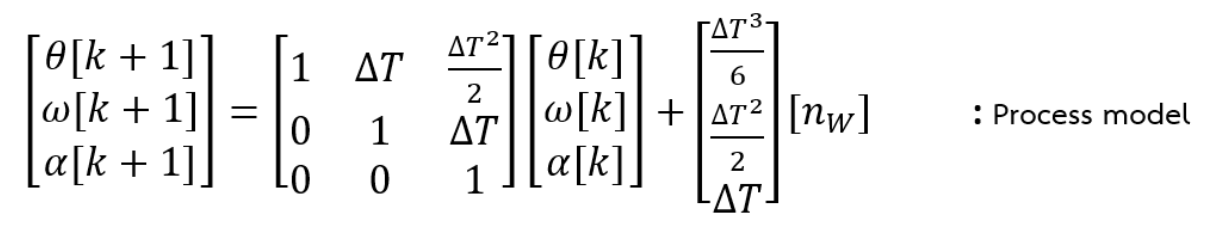

Kinematics Base Model

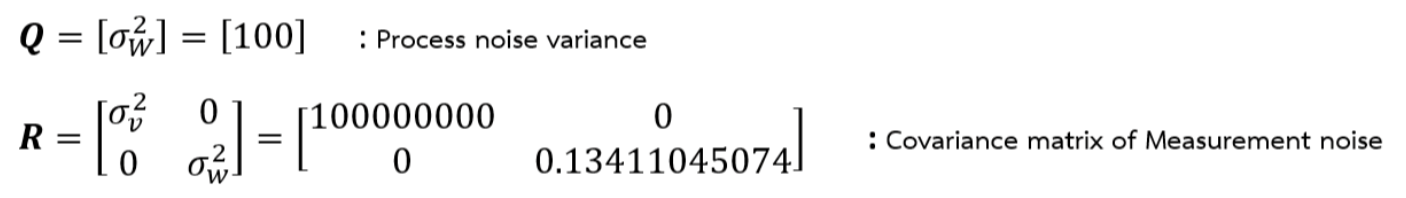

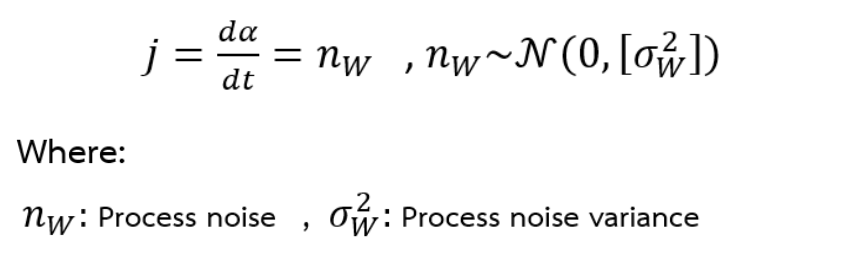

Assumption: Zero mean gaussian jerk

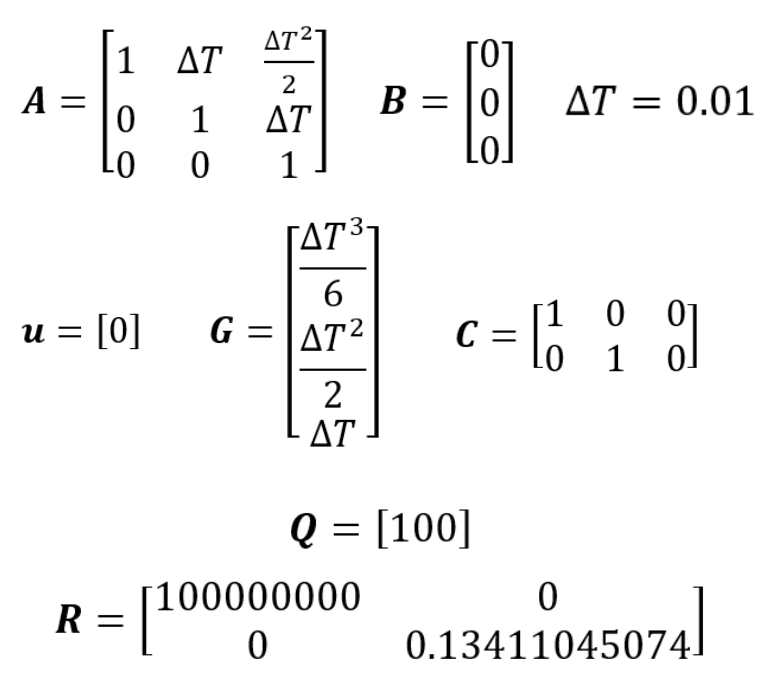

Matrix Summary

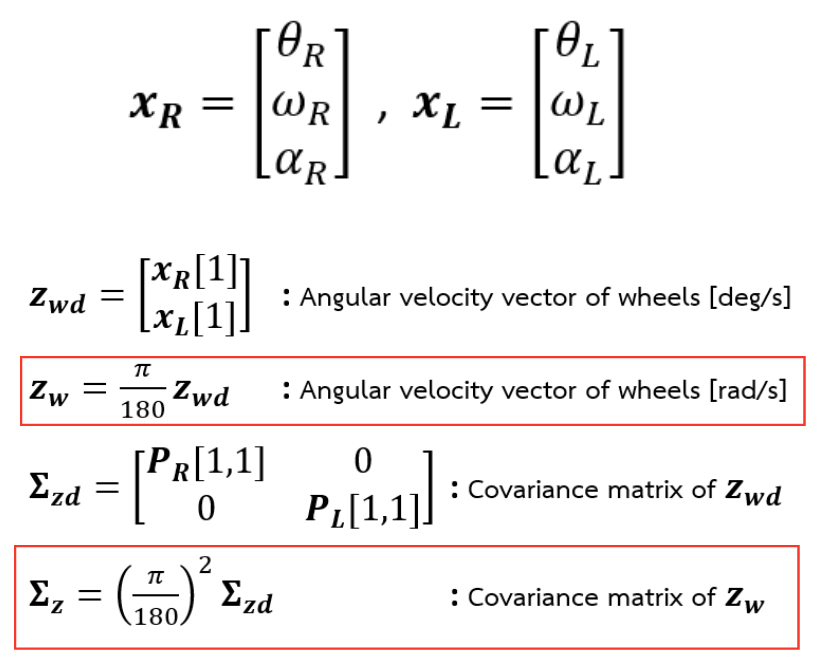

Kalman Output

Implemention (Core M7)

void Predict_RightWheel()
{
    X_R = A*X_R + B*U;
    P_R = A*P_R*(A.transpose()) + G*Q_R*(G.transpose());
}
float UserCodeUpdateRightWheel(float position, float velocity)
{
    Predict_RightWheel();
    Y_R(0,0) = position;    // assign value of encoder
    Y_R(1,0) = velocity;    // assign value of encoder
    K_R = P_R*(C.transpose()) * (C*P_R*(C.transpose()) + R_R).inverse();
    X_R = X_R + K_R*(Y_R - C*X_R);  // get new X(estimated state)
    P_R = (MatrixXf::Identity(3,3) - K_R*C) * P_R;
    return X_R(1,0);        // get estimated velocity
}

void Predict_LeftWheel()
{
    X_L = A*X_L + B*U;
    P_L = A*P_L*(A.transpose()) + G*Q_L*(G.transpose());
}
float UserCodeUpdateLeftWheel(float position, float velocity)
{
    Predict_LeftWheel();
    Y_L(0,0) = position;    // assign value of encoder
    Y_L(1,0) = velocity;    // assign value of encoder
    K_L = P_L*(C.transpose()) * (C*P_L*(C.transpose()) + R_L).inverse();
    X_L = X_L + K_L*(Y_L - C*X_L);  // get new X(estimated state)
    P_L = (MatrixXf::Identity(3,3) - K_L*C) * P_L;
    return X_L(1,0);        // get estimated velocity
}

Runtime Test

runstarttime = micros();
//******************************************************************************************************
Pulse2Position();
estimated_rightvel = update_rightwheel(Right_DegRel, Right_DegSec)*(M_PI/180)*0.085;        // DegSec to m/s
estimated_leftvel = update_leftwheel(Left_DegRel, Left_DegSec)*(M_PI/180)*0.085;            // DegSec to m/s
//******************************************************************************************************
runtime = micros() - runstarttime;

Runtime: 0.059 ms
